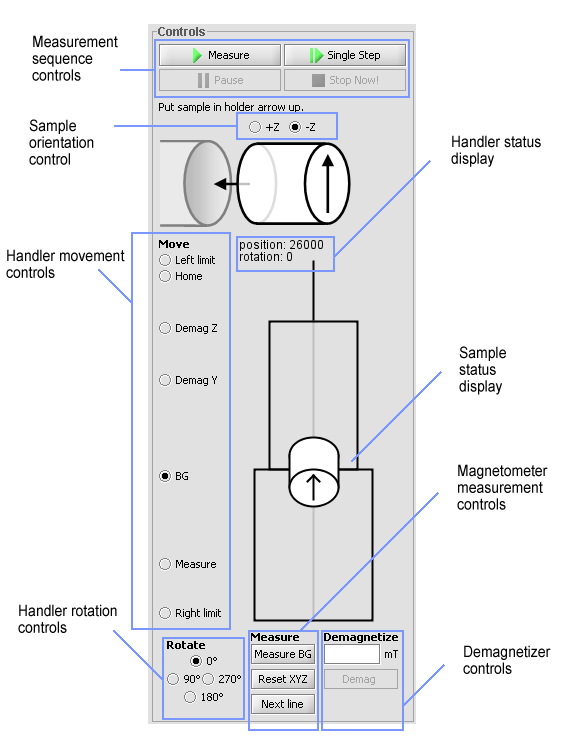

Manual Controls

Sequence measurement controls

• Measure
  Starts the sequence created in sequence panel.
• Single Step
  Executes next step in sequence.
• Pause
  Pauses the sequence after the current step is finished.
• Stop Now!
  Stops the the sequence right after current task (movement, degaussing, measurement) is finshed .

Sample orientation control

Handler movement controls

• Left limit
  Moves the handler to left until it reaches the left limiter.
• Home
  Seeks the home position.
• Demag Z
  Moves the handler to demagnetizing position for Z-axis.
• Demag Y
  Moves the handler to demagnetizing position for Y-axis and X-axis.
• BG
  Moves the handler to background noise measurement position.
• Measure
  Moves the handler to magnetometer measurement position.
• Right limit
  Moves the handler to right until it reaches the right limiter.

Handler rotation controls

Rotation of the handler is choosed by selecting the corresponding degree.

Handler status display

Shows the current location of the hanlder in steps and rotation in degrees.

Sample status display

Shows the current location and rotation of the sample.

Magnetometer measurement controls

NOTE: These controls are available only when the handler is in BG- or Measure-positions

• Measure BG / Measure XYZ
  Measures the background noise or the XYZ-values depending from the handler position.
• Reset
  Resets the magnetometer.
• Next line
  Locks the current measurement and adds a new line to sequence.

Demagnetizer controls

NOTE: These controls are available only when the handler is in demag Z- or demag Y -position.
Sample is demagnetized by writing the preferred demagnetation field in mT:s to textfield and then pressing Demag-button. If the given value is out of range the field will flash red.
