Project Explorer

Here you select the directory and in it, project file to save your measurements.

Changing current directory

Three ways for doing this:

• Click Browse..., use the opening standard directory chooser dialog to select directory to change to.



  OR

• Click the down-arrow next to text field showing the current directory; click desired directory from appearing directory history.

  Directory history shows recently visited directories, where project files were opened. Last visited directory is shown on the top.



  OR

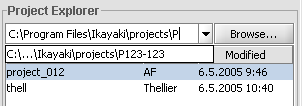

• Click into the text field showing current directory; write the new directory there.

  Use down- and up-arrows, or tabulator and shift-tabulator to cycle through appearing autocomplete list. Press enter to change the directory. If the directory does not exist, text field is flashed red for error and directory is not changed. While typing a new directory, press esc to cancel and revert the text field back to current directory.



Opening a project

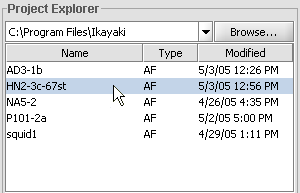

Click desired project from file list; clicked project will open.

Creating a new project

Click AF combobox to change project type as Thellier or Thermal, if needed. Click Create New, or press enter, to create the new project into current directory. After that Ikayaki opens a dialog where it asks you to type the name of the new project. If a project with the same name exists, or project filename has errors, the project is not created. You can also use the Copy Project option to create a new project which inherits the project informations from currently open project.

Measuring selected project

See AF or Thellier measuring sequence. The project being measured is shown with a purple background, and just-measured with a green one.

Project list headers

Name-columnd shows the project file name (without .ika extension).
Type-column indicates project type: AF, Thellier or Thermal.
Modified-columnd holds the last modification time of the project. Any change to project's state modifies and saves the project, such as executing a measuring step or changing project information fields.

Sorting the project list

Project list can be sorted with any of the column headers (Name, Type or Modified) by clicking that header.

Exporting project(s) as DAT, TDT, SRM or CSV files

Right-click project file to export, or, shift-click, ctrl-click or drag mouse to select multiple files and right-click on the selection. Chooce desired export format and location from appearing popup menu.

If any of the first choices with no location is selected, a file- or directory-chooser dialog appears; use it to specify filename (for single file export) or directory (for multiple file export) where to export.
