Refer to the XSLTC runtime environment design document for a description of node types before proceeding. In short, each node in the our DOM implementation is represented by a simple integer. By using this integer as an index into an array called _type[] we can find the type of the node.

The type of the node is an integer representing the type of element the node is. All elements <bob> will be given the same type, all text nodes will be given the same type, and so on. By using the node type as an index an array called _namesArray[] we can find the name of the element type - in this case "bob". This code fragment shows how you can, with our current implementation, find the name of a node:

	int node = iterator.getNext(); // get next node int type = _type[node]; // get node type String name = _namesArray[type]; // get node name

We want to keep the one-type-per-node arrangement, since that lets us produce fairly efficient code. One type in the DOM maps to one type in the compiled translet. What we could do to represent the namespace for each node in the DOM is to add a _namespaceType[] array that holds namespace types. Each node type maps to a namespace type, and each namespace type maps to a namespace name (and a prefix with a limited scope):

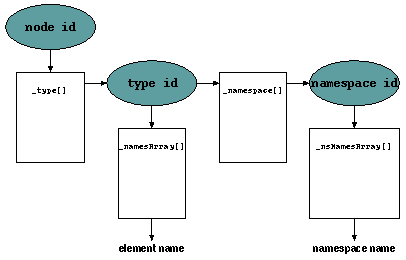

Figure 2: Mapping between node types/names, namespace types/names

This code fragment shows how we could get the namespace name for a node:

	int node = iterator.getNext(); // get next node int type = _type[node]; // get node type int nstype = _namespace[type]; // get namespace type String name = _namesArray[type]; // get node element name String namespace = _nsNamesArray[nstype]; // get node namespace name

Note that namespace prefixes are not included here. Namespace prefixes are local to the XML document and will be expanded to the full namespace names when the nodes are put into the DOM. This, however, is not a trivial matter.

We cannot simply have a single namespace prefix array similar to the _namespaceArray[] array for mapping a namespace type to a single prefix. This because prefixes can refer to different namespaces depending on where in the document the prefixes are being used. In our last example's XML fragment the empty prefix "" initially referred to the default namespace (the one with no name - just like a Clint Eastwood character). Later on in the document the empty prefix is changed to refer to a namespace called "http://postal.ie/spec-1.0".

Namespace prefixes are only relevant at the time when the XML document is parsed and the DOM is built. Once we have the DOM completed we only need a table that maps each node type to a namespace type, and another array of all the names of the different namespaces. So what we want to end up with is something like this:

Figure 3: Each namespace references in the DOM gets one entry

The namespace table has one entry for each namespace, nomatter how many prefixes were used ro reference this namespace in the DOM. To build this array we need a temporary data structure used by the DOM builder. This structure is a hashtable - where the various prefixes are used for the hash values. The contents of each entry in the table will be a small stack where previous meanings of each prefix will be stored:

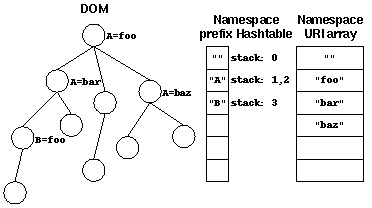

Figure 4: Temporary data structure used by the DOM builder

When the first node is encountered we define a new namespace "foo" and assign this namespace type/index 1 (the default namespace "" has index 0). At the same time we use the prefix "A" for a lookup in the hashtable. This gives us an integer stack used for the prefix "A". We push the namespace type 1 on this stack. From now on, until "A" is pop'ed off this stack, the prefix "A" will map to namespace type 1, which represents the namespace URI "foo".

We then encounter the next node with a new namespace definition with the same namespace prefix, we create a new namespace "bar" and we put that in the namespace table under type 2. Again we use the prefix "A" as an entry into the namespace prefix table and we get the same integer stack. We now push namespace type 2 on the stack, so that namespace prefix "A" maps to namespace URI "bar". When we have traversed this node's children we need to pop the integer off the stack, so when we're back at the first node the prefix "A" again will point to namespace type 0, which maps to "foo". To keep track of what nodes had what namespace declarations, we use a namespace declaration stack:

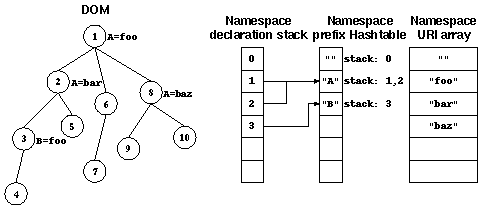

Figure 5: Namespace declaration stack

Every namespace declaration is pushed on the namespace declaration stack. This stack holds the node index for where the namespace was declared, and a reference to the prefix stack for this declaration. The endElement() method of the DOMBuilder class will need to remove namespace declaration for the node that is closed. This is done by first checking the namespace declaration stack for any namespaces declared by this node. If any declarations are found these are un-declared by poping the namespace prefixes off the respective prefix stack(s), and then poping the entry/entries for this node off the namespace declaration stack.

The endDocument() method will build an array that contains all namespaces used in the source XML document - _nsNamesArray[] - which holds the URIs of all refered namespaces. This method also builds an array that maps all DOM node types to namespace types. This two arrays are accessed through two new methods in the DOM interface:

	public String getNamespaceName(int node); public int getNamespaceType(int node);

The SymbolTable class has three datastructures that are used to hold namespace information:

• First there is the _namespaces[] Hashtable that maps the names of in-scope namespace to their respective prefixes. Each key in the Hashtable object has a stack. A new prefix is pushed on the stack for each new declaration of a namespace.
• Then there is the _prefixes[] Hashtable. This has the reverse function of the _namespaces[] Hashtable - it maps from prefixes to namespaces.
• There is also a hashtable that is used for implementing the <xsl:namespace-alias> element. The keys in this hashtable is taken from the stylesheet-prefix attribute of this element, and the resulting prefix (from the result-prefix attribute) is used as the value for each key.

The SymbolTable class offers 4 methods for accessing these data structures:

	public void pushNamespace(String prefix, String uri); public void popNamespace(String prefix); public String lookupPrefix(String uri); public String lookupNamespace(String prefix);

These methods are wrapped by two methods in the Parser class (a Parser object alwas has a SymbolTable object):

	// This method pushes all namespaces declared within a single element public void pushNamespaces(ElementEx element); // This method pops all namespaces declared within a single element public void popNamespaces(ElementEx element);

The translet class has, just like the DOM, a namesArray[] structure for holding the expanded QNames of all accessed elements. The compiled translet fills this array in its constructor. When the translet has built the DOM (a DOMImpl object), it passes the DOM to the a DOM adapter (a DOMAdapter object) together with the names array. The DOM adapter then maps the translet's types to the DOM's types.

Each entry in the DOM's _namesArray[] is expanded to contain the full QName, so that instead of containing prefix:localname it will now contain namespace-uri:localname. In this way the expanded QName in the translet will match the exanded QName in the DOM. This assures matches on full QNames, but does not do much for match="A:*" type XPath patterns. This is where our main challenge lies.

The original implementation of the XSLTC runtime environment would only allow matches on "*" and "@*" patterns. This was achieved by mapping all elements that could not be mapped to a translet type to 3 (DOM.ELEMENT type), and similarly all unknown attributes to type 4 (DOM.ATTRIBUTE type). The main switch() statement in applyTemplates() would then have a separate "case()" for each of these. (Under each case() you might have to check for the node's parents in case you were matching on "path/*"-type patterns.) This figure shows how that was done:

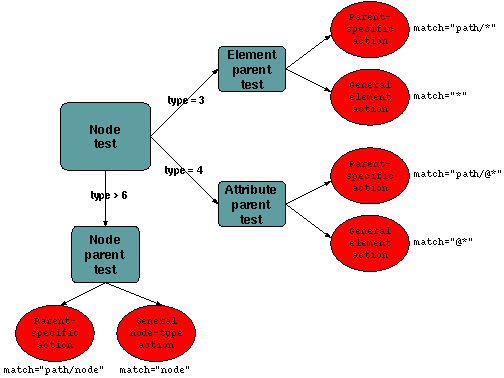

Figure 6: Previous pattern matching

The "Node test" box here represents the "switch()" statement. The "Node parent test" box represent each "case:" for that switch() statement. There is one case: for each know translet node type. For each node type we have to check for any parent patterns - for instance, for the pattern "/foo/bar/baz", we will get a match with case "baz", and we have to check that the parent node is "bar" and that the grandparent is "foo" before we can say that we have a hit. The "Element parent test" is the test that is done all DOM nodes that do not directly match any translet types. This is the test for "*" or "foo/*". Similarly we have a "case:" for match on attributes ("@*").

What we now want to achieve is to insert a check for patterns on the format "ns:*", "foo/ns:*" or "ns:@*", which this figure illustrates:

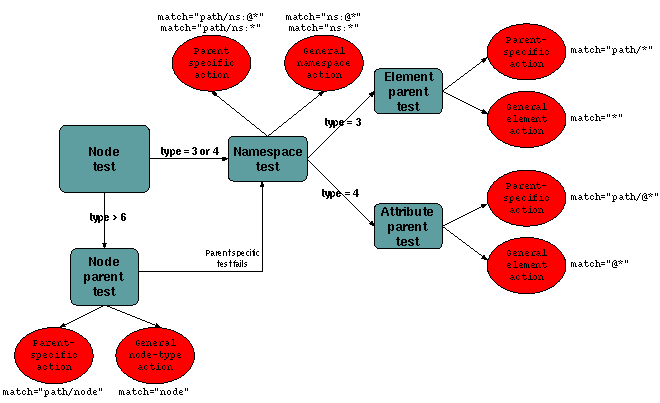

Figure 7: Pattern matching with namespace tests

Each node in the DOM needs a namespace type as well as the QName type. With this type we can match wildcard rules to any specific namespace. So after any checks have been done on the whole QName of a node (the type), we can match on the namespace type of the node. The main dispatch switch() in applyTemplates() must be changed from this:

	public void applyTemplates(DOM dom, NodeIterator iterator, TransletOutputHandler handler) { // Get next node from iterator while ((node = iterator.next()) != END) { // Get internal node type final int type = DOM.getType(node); switch(type) { case DOM.ROOT: // Match on "/" pattern handleRootNode(); break; case DOM.TEXT: // Handle text nodes handleText(); break; case DOM.ELEMENT: // Match on "*" pattern handleWildcardElement(); break; case DOM.ATTRIBUTE: // Handle on "@*" pattern handleWildcardElement(); break; case nodeType1: // Handle 1st known element type compiledCodeForType1(); break; : : : case nodeTypeN: // Handle nth known element type compiledCodeForTypeN(); break; default: NodeIterator newIterator = DOM.getChildren(node); applyTemplates(DOM, newIterator, handler); break; } } return; }

To something like this:

	public void applyTemplates(DOM dom, NodeIterator iterator, TransletOutputHandler handler) { // Get next node from iterator while ((node = iterator.next()) != END) { // First run check on node type final int type = DOM.getType(node); switch(type) { case DOM.ROOT: // Match on "/" pattern handleRootNode(); continue; case DOM.TEXT: // Handle text nodes handleText(); continue; case DOM.ELEMENT: // Not handled here!!! break; case DOM.ATTRIBUTE: // Not handled here!!! break; case nodeType1: // Handle 1st known element type if (compiledCodeForType1() == match) continue; break; : : : case nodeTypeN: // Handle nth known element type if (compiledCodeForTypeN() == match) continue; break; default: break; } // Then run check on namespace type final int namespace = DOM.getNamespace(type); switch(namespace) { case 0: // Handle nodes matching 1st known namespace if (handleThisNamespace() == match) continue; break; case 1: // Handle nodes matching 2nd known namespace if (handleOtherNamespace() == match) continue; break; } // Finally check on element/attribute wildcard if (type == DOM.ELEMENT) { if (handleWildcardElement() == match) continue; else { // The default action for elements NodeIterator newIterator = DOM.getChildren(node); applyTemplates(DOM, newIterator, handler); } } else if (type == DOM.ATTRIBUTE) { handleWildcardAttribute(); continue; } } }

First note that the default action (iterate on children) does not hold for attributes, since attribute nodes do not have children. Then note that the way the three levels of tests are ordered is consistent with the way patterns should be prioritised:

• Match on element/attribute types:
• match="/" - match on the root node
• match="B" - match on any B element
• match="A/B" - match on B elements with A parent
• match="A | B" - match on B or A element
• match="foo:B" - match on B element within "foo" namespace
• Match on namespace:
• match="foo:*" - match on any element within "foo" namespace
• match="foo:@*" - match on any attribute within "foo" namespace
• match="A/foo:*" - match on any element within "foo" namespace with A parent
• match="A/foo:@*" - match on any attribute within "foo" namespace with A parent
• Match on wildcard:
• match="*" - match on any element
• match="@*" - match on any attribute
• match="A/*" - match on any element with A parent
• match="A/@*" - match on any attribute with A parent
