AF Measurement

This help explains how AF-project is created and how measurement sequence is performed.

Calibrating

Start up

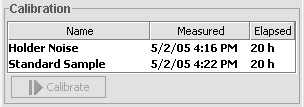

Usually if calibration hasn't been done recently, you need to calibrate. If calibration has been done within 24 hours you don't normally need to calibrate and can jump to next segment. If calibration hasn't been done recently Choose Holder Noise from calibration list. Make sure that sample holder is empty, move it to home with manual controls, if it is not already there to check.

Holder noise calibration

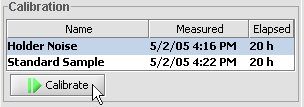

Click Calibrate-button. Wait until measurement is finished

Holder noise calibration done

Move sample holder to home. Choose Standard Sample from calibration list. Put standard sample into holder. Click Calibrate-button. Wait until measurement is finished. Move sample holder to home. Take standard sample out of holder.

More about calibration in Calibration.

Creating new AF-project

Creating new project

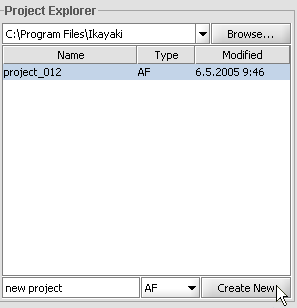

Write projects name into field at the bottom of project explorer. Make sure that AF is selected(shown) in drop down menu. Click Create New-button. New project is added to project explorers list and selected.

More info about project explorer in Project Explorer.

Inserting data

Empty project information

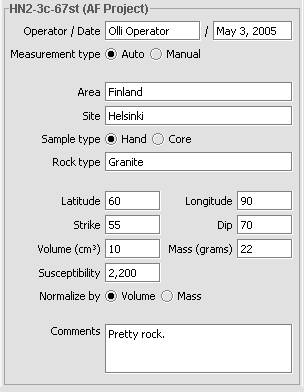

Put into operator-field your name. Date-field is automatically filled, but it can be changed as desired. Choose Auto-radio button. Put into Area-field area from where sample was taken and to Site-field site. Choose Hand or Core -radio button, according to samples type. Write into Rock type-field samples rock type. Write into Latitude and Longitude -fields samples latitude and longitude. Write into Strike and Dip -fields samples strike and dip. Write into Volume and Mass -fields samples volume and mass. Write samples susceptibility into susceptibility field. Choose Volume-radio button. Write any comments you want.

It is not necessary to insert any data on these fields before measuring. Measurements are recalculated after any change to relevant fields in project measurement.

More about project information in Project information.

Adding sequence

Selecting sequence

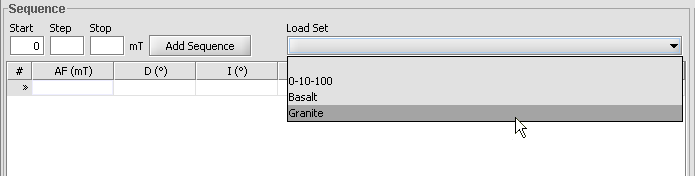

Choose correct measurement sequence for sample from drop down menu. Sequence is added to measurement sequence table.

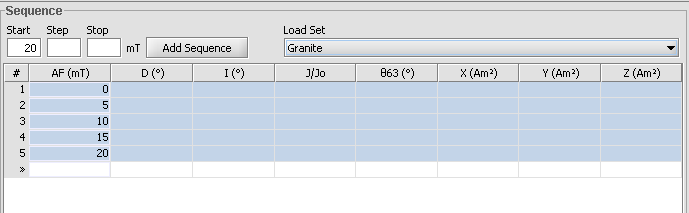

Sequene added

More about measurement sequence in Sequence Panel.

Measuring

Ready for measuring

Put sample into sample holder. Click Measure-button. Magnetometer starts measuring and demagnetizing.

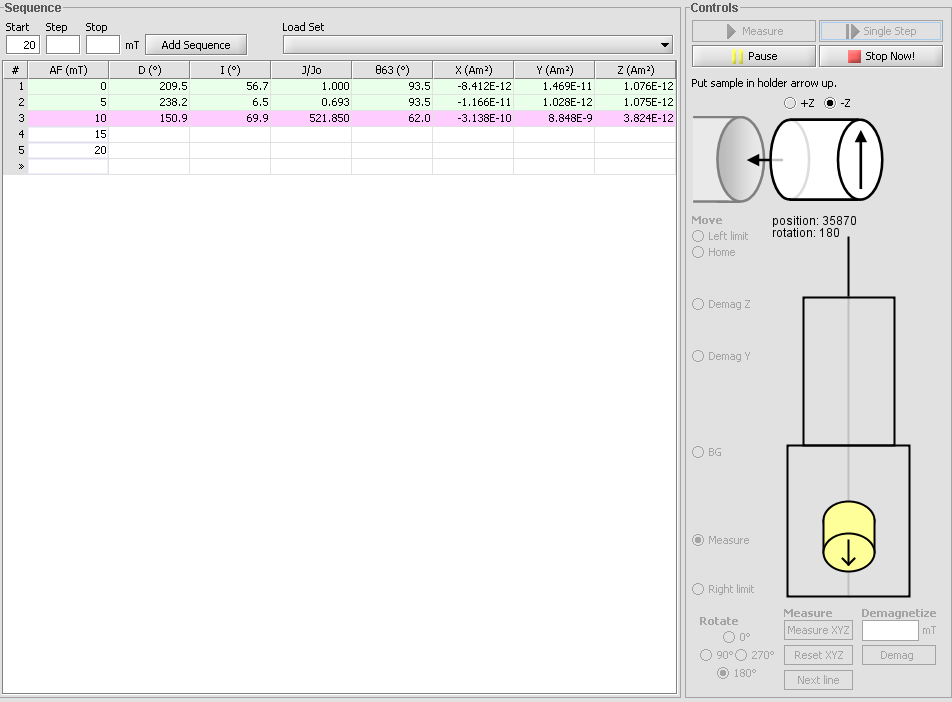

Measurement in progress

Wait until measurement sequence is finished. Move sample holder to home. Take sample out of holder.

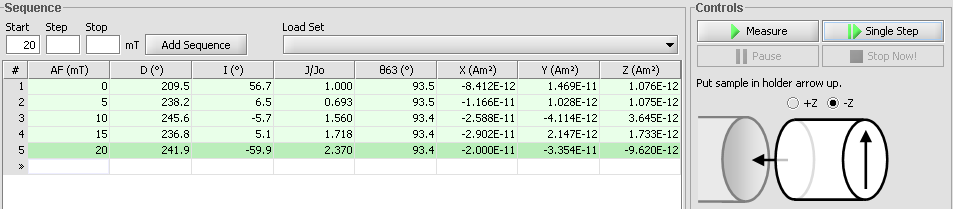

Measurement done

More about measurement controls in Manual Controls.

More about graphs in Graphs.

More about printing in Printing.

More about configuration and options in Configuration.
